Sliver Hydrophilic Aluminum Foil AA8011/ AA3102 Corrosion Resistance

Name: Sliver Hydrophilic Aluminum Foil AA8011 AA3102 Corrosion Resistance
Brand: NOONDAY
Price: 1 USD

China Sliver Hydrophilic Aluminum Foil AA8011/ AA3102 Corrosion Resistance wholesale

Brand Name : NOONDAY

Model Number : AA8011/ AA1100/ AA3102

Certification : RoHS/ISO9001/ASTM/JIS/GB/EN/ASTMB

Place of Origin : China

MOQ : 5tons

Payment Terms : L/C, T/T

Supply Ability : 50, 000 Mt Per Year

Delivery Time : according to specification and quantity

Packaging Details : Standard Export Packaging

Color : Sliver

Alloy States : AA8011/ AA1100/ AA3102

Surface Treatment : Light Blue, Dark Blue, Golden, Special White

Technology : Rolling

Thickness : 0.089mm-0.35mm

Width : 150mm-1650mm

Application : Cooling Exchanger,air Conditioners

Transport Package : Standard Export Packaging

Contact Now

HYDROPHLIC ALUMINIUM FOILS FOR FINS OF RADIATORS

Commodity: Aluminium hydrophlic foils( aluminium color coated foil)
Specification

Thickness tolerance(mm)

Thickness(mm)	Tolerance(mm)
0.080	±0.005
> 0.115-0.130	±0.008
> 0.130-0.32	±0.010

Width tolerance(mm)

Width(mm)	tolerance
≤500	+1.0,-0.5
> 500	±1.0

Detail explanation:

The effect of hydrophilicity

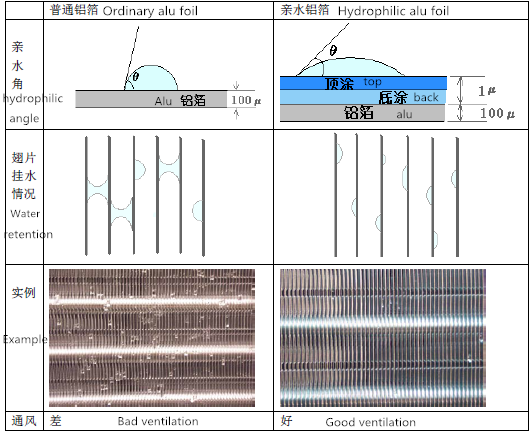

Aluminum foil surface with hydrophilic layer has a strong affinity for water, condensate on the fins spread quickly, not easy to form a "water bridge", so the ventilation effect of air conditioning operation works well. A measure of hydrophilicity is called a hydrophilic angle. Please find the comparison between ordinary aluminum foil and hydrophilic aluminum foil in the following table.

Sliver Hydrophilic Aluminum Foil AA8011/ AA3102 Corrosion Resistance

Coating types:

(1)Film with corrosive resistance inorganic resin

(2)Hydrophilic film: organic resin

Characteristic of hydrophilic aluminium foil

excellent hydrophilicity and corrosion resistance
good formability and no wear on the mold
a strong resistance to stamping oily, soluble, heat resistance
air flow resistance, heat exchange rate can generally increase 10% -15%.

Coating performance

SERIAL NO	ITEMS	TESTING METHODS	RESULTS
1	superficies and appearance	by eyes	golden, blue, black
2	film thickness	calculated from weight of film	2-3μm
3	original hydrophilicity	test hydrophilicity directly	≥8mm
4	initial hydrophilicity	dip in vaporing oil 3min (20±15℃) →vertical situation 7min at normal temperature → 210±10℃ dry 2mic → dip in pure water 10min → dry 10min/cycle at normal temperature, 10 circle → test hedrophilicity	≥6.0mm
5	salt-spray resistance	JIS-Z-2371 (5%x35℃x72hours continuious slat spray	≥R.NO9.5
6	heat resistance	A:200℃x10mins B:400℃x10mins	A:no changes B:turns light brown
7	oil resistance	dip in press oil 24hours → wash in flowing water → peel test	no delamenation
8	adhensive force	A,bending 180° B,peel test C,erichsen value = 5mm	100% no delamination
9	odor	by nose after dipping in water, and drying naturally	no odor

Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.

Product Tags:

hydrophilic aluminium foil

aluminum fin stock

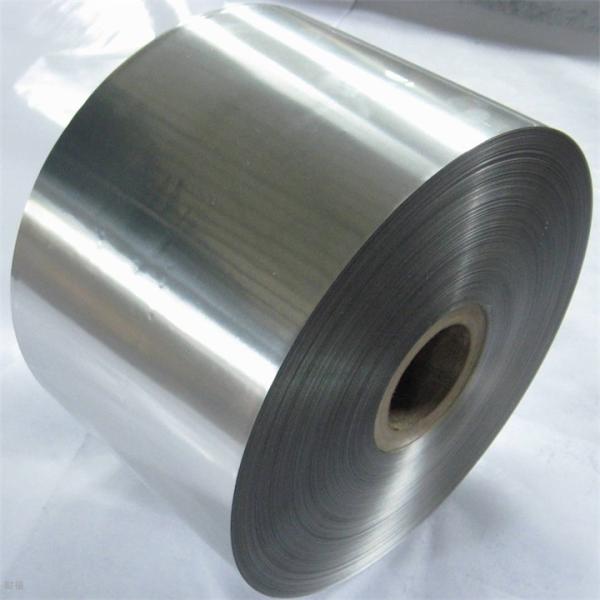

Sliver Hydrophilic Aluminum Foil AA8011/ AA3102 Corrosion Resistance Images
